Dettagli del prodotto
Luogo di origine: Cina
Marca: Warom
Certificazione: CCS,BV,ABS,IEC,IECEX,EX,GB(EX)
Numero di modello: HRY51-G/C
Termini di trasporto & di pagamento
Imballaggi particolari: imballaggio in cartone/imballaggio in scatola di legno
Termini di pagamento: T/T
Application: |
Widely used for the illumination on various marine platforms, chemical tankers, LNG ships, and other offshore structures in hazardous locations such as oil refineries, petrochemical plants, and chemical plants. |
Can reliably work: |
in severe environment exposed in moisture, vibration or corrosion |
Explosive hazardous atmosphere: |
Zone 1, Zone 2, Zone 21, Zone 22 |
Housing: |
Stretching formed 316L stainless steel, powder coated surface |
Cover: |
Cleat polycarbonate |
Data for light with emergency function: |
Single tube emergency, emergency lighting time ≥120 min |
Application: |
Widely used for the illumination on various marine platforms, chemical tankers, LNG ships, and other offshore structures in hazardous locations such as oil refineries, petrochemical plants, and chemical plants. |
Can reliably work: |
in severe environment exposed in moisture, vibration or corrosion |
Explosive hazardous atmosphere: |
Zone 1, Zone 2, Zone 21, Zone 22 |
Housing: |
Stretching formed 316L stainless steel, powder coated surface |
Cover: |
Cleat polycarbonate |
Data for light with emergency function: |
Single tube emergency, emergency lighting time ≥120 min |
| Parametri tecnici | |
| Conformità alle norme | IEC60079, EN60079, GB/T 3836, norma CCS |
| Temperatura ambiente | -40°C~+53°C/58°C |
| Fonte luminosa | tubo a LED a prova di esplosione |
| Grado di protezione | IP66/IP67 |
| a prova di corrosione | WF2 |
| Entrata del cavo | 2×M25×1.5, adatto per cavi da Φ12.5 a Φ20.5 mm |
| Terminal | 1.5~4 mm2 |

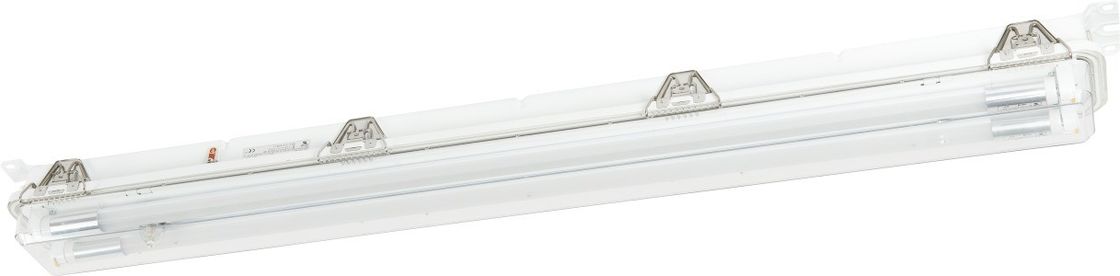

HRY51-G/C Luce a pendenza a prova di esplosione
(Scarica qui:HRY51-G/C Luce pendente a prova di esplosione.pdf)
