Dettagli del prodotto
Place of Origin: China
Marca: WAROM
Certificazione: IECEx; ATEX;

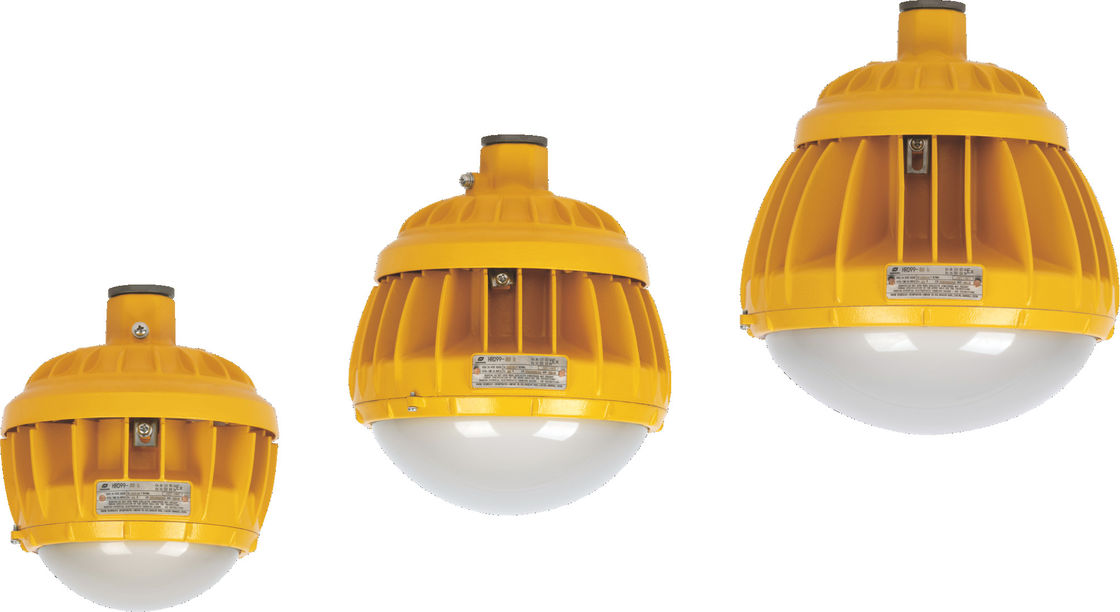

Model Number: HRD99
Termini di trasporto & di pagamento
Can be used in: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D |
Applicable lamp and power(max.100W): |
LED:20W,30W,50W,70W,80W,100W |
Isolated LED lamp compartment: |
CC-CV( constant current-constant voltage)power controller compartment and terminal compartment;Wind-convection heat dissipation structure. |
Can be used in: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D |
Applicable lamp and power(max.100W): |
LED:20W,30W,50W,70W,80W,100W |
Isolated LED lamp compartment: |
CC-CV( constant current-constant voltage)power controller compartment and terminal compartment;Wind-convection heat dissipation structure. |
Specification
| Global (IECEx) | IECEx(applied for) |
| Gas and dust | Ex db lIB T6/T5 Gb Ex db lIC T6/T5 Gb Ex tb lIIC T80℃/T95℃ Db |
| Europe(ATEX) | ATEX (applied for) |
| Gas and dust |
|
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
Data
| Material | Copper-free aluminium alloy, powder coated surface, yellow (RAL1021)Polycarbonate,stands 4J impact |
| Lamp specification | Integrated LED, Multiple LED |
| Lamp power (W) | 20W, 30W, 50W,7OW, 8OW, 100W |
| Colour temperature (CCT) | 5700K |
| Colour rendering index (Ra) | ≥80 |
| Ambient temperature | 1BT6/lCT80℃ for Tamb:-40℃~+40℃ 1BT5/llCT95℃ for Tamb:-40℃~+58℃ lCT6 for Tamb:-20℃~+40℃ llCT5 forTamb:-20℃~+58℃ |
| Emergency lighting time | 120/180 Mins |
| Rated voltage | 220~240VAC 50160Hz,24~48V DC |
| Terminal | 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries | M25 x 1.5 |
| Available cable outer diameter | Φ10~Φ14 (mm) |
BnY81-LED Series Explosion-proof Light Fittings for Fluorescent Lamp
(Download here:HRD99 Series Explosion-proof LED Lightings.pdf)
